Mirrors
Shelves
Changing Table
MODEL B01-740 - Fixed Tilt Mirror
CONSTRUCTION - FRAME fabricated of type 304 (18-8), 18 gauge stainless steel, corners heliarc welded and ground smooth to satin finish. 20 gauge angle stiffeners welded to frame provide additional rigidity. BACK fabricated of 20 gauge galvanized steel, secured to frame with concealed screws equipped with integral horizontal hanging brackets. MIRROR of first quality 1/4" float glass triple silver plated with electro-copper plated layer and thermosetting infrared cured paint backing with Poly-Glaze protective finish. Meets federal specification DD-M-00411b against silver spoilage and guaranteed for 15 years. WALL HANGER fabricated of 18 gauge cold rolled steel, all welded construction to form rigid template. INSTALLATION - Secure concealed mounting bracket to wall
with NOTE: Provide in-wall backing at mounting screw locations. Position mirror over mounting bracket to engage hanger tabs. Slide mirror down and lock into position. NOTE: An inherent characteristic of a manufacturing process is distortion which may vary from mirror to mirror.
Top of Page --------- Return to Soap & Mirrors Page MODEL B01-781 - Channel Frame Mirror Stock Sizes
:
CONSTRUCTION - FRAME fabricated of heavy-gauge, one-piece, roll-formed stainless steel with bright annealed finish. Channel is 3/4" x 3/4" x 7/16" with 90° mitered corners. Double-strength continuous integral stiffener on all sides for added strength. BACK fabricated of 20 gauge galvanized steel. MIRROR of first quality 1/4" float glass triple silver plated with electro-copper plated layer and thermosetting infrared cured paint backing with Poly-Glaze protective finish. Meets federal specification DD-M-00411b against silver spoilage and guaranteed for 15 years. All edges protected by shock-absorbing, neoprene tubing. MOUNTING BRACKETS fabricated of 18 gauge cold rolled steel. INSTALLATION - Concealed mounting brackets to wall
with screws (included) at NOTE: Provide in-wall backing at mounting screw locations. Position mirror over mounting brackets to engage hanger tabs. Slide mirror down and lock into position. NOTE: An inherent characteristic of a manufacturing process is distortion which may vary from mirror to mirror.
Top of Page --------- Return to Soap & Mirrors Page MODEL B01-755 - Shelf - Surface Mounted Stainless Steel
Stock Sizes :
CONSTRUCTION - SHELF fabricated of type 304 (18-8), 18 gauge stainless steel with exposed surfaces in architectural satin finish. End brackets are integral. CENTER BRACKETS (shelves over 24" length) fabricated of type 304 (18-8), 16 gauge stainless steel. Welded to shelf. INSTALLATION - Secure to wall with mounting screws (included) at holes provided. Top of Page --------- Return to Soap & Mirrors Page MODEL
B01-790 - Fold Down Shelf Surface Mounted - Zamak Overall Dimensions : 5" W x 14-7/8" H
CONSTRUCTION - SHELF AND MOUNTING BRACKET of heavy duty zinc die casting with chrome-plated finish. Shelf has textured non-slip surface. OPERATION - Hinged shelf stores in vertical position, folds down for use. Automatically returns to upright position when objects are removed. Holds up to 150 pounds.
INSTALLATION - Secure to wall or partition with mounting screws (included) at holes Top of Page --------- Return to Soap & Mirrors Page

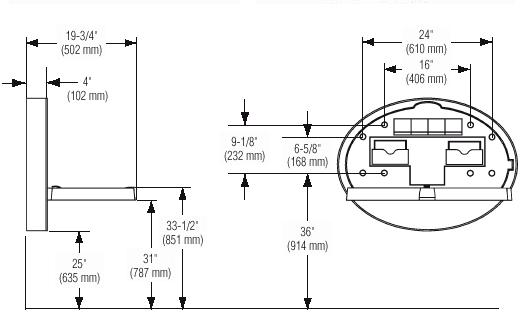

MODEL B01-9611 - Changing Table
Surface Mounted - Polyethylene Overall Dimensions : 35-1/2" W x 24-3/4" H x 3-15/16" D
CONSTRUCTION - Surface mounted baby changing station shall be solid light grey high density polyethylene. Hinge shall have full length steel hinge pin and concealed gas shock. Unit shall include dual integrated paper liner dispenser, molded-in graphics, integral bag hook, and safety strap with unbreakable buckle. Unit shall be operable with less than 5 lbs. of force and shall withstand a static load of 300 lbs. INSTALLATION - Secure to wall through mounting holes on 16" and 24" centers. Mounting hardware for typical conditions is included. NOTE: Sufficient wall backing ( provided by others ) is required for proper installation.
Top of Page --------- Return to Soap & Mirrors Page |
Stock Sizes : 18" W x 30"
H
screws (included) at holes provided.
