Products -
Pilaster Anchors - Shoes - Headrail
OHB Clip Angle Anchor
Headrail
Support Required
3/4"
or 1" or 1-1/4" Post
|
Model |
Description |
|
80-3100 |
OHB
- Clip angle anchor set - 2 Clips and fasteners
|
OHF Anchor
Plate Set
1"
or 1-1/4" Post
|
Model |
Description |
|
80-3303-FS
80-3304-FS
80-3305-FS
80-3306-FS
80-3308-FS
80-3310-FS
80-3312-FS |
OHF
- 3" Anchor Plate - 1 Bolt to Floor - Fasteners Included
OHF
- 4" Anchor Plate - 1 Bolt to Floor - Fasteners Included
OHF
- 5" Anchor Plate - 2 Bolt to Floor - Fasteners Included
OHF
- 6" Anchor Plate - 2 Bolt to Floor - Fasteners Included
OHF
- 8" Anchor Plate - 2 Bolt to Floor - Fasteners Included
OHF
- 10" Anchor Plate - 2 Bolt to Floor - Fasteners Included
OHF
- 12" Anchor Plate - 2 Bolt to Floor - Fasteners Included
|
Top of Page
--------- Return to
Hardware Page
Stainless
Steel - One Piece Shoe
4"
High - 3/4" Post - In-Set Flange - No bottom hem
|
Model |
Description |
|
80-3003-SS
80-3004-SS
80-3005-SS
80-3006-SS
80-3008-SS
80-3010-SS
80-3012-SS
|
One
Piece Shoe - 3/4" x 3 - Formed Stainless
One
Piece Shoe - 3/4" x 4" - Formed Stainless
One
Piece Shoe - 3/4" x 5" - Formed Stainless
One
Piece Shoe - 3/4" x 6" - Formed Stainless
One
Piece Shoe - 3/4" x 8" - Formed Stainless
One
Piece Shoe - 3/4" x 10" - Formed Stainless
One
Piece Shoe - 3/4" x 12" - Formed Stainless
|

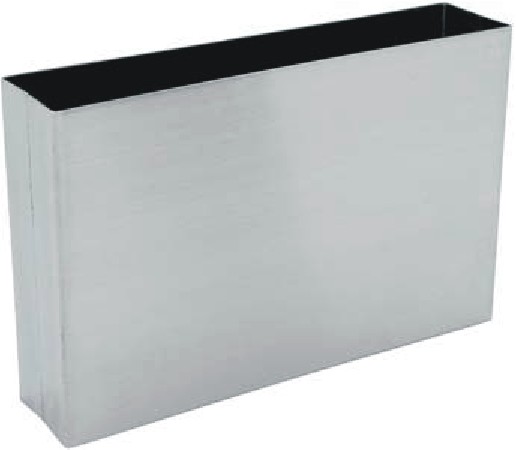

4"
High - 1" Post - No bottom hem
|
Model |
Description |
|
80-31403-SS
80-31404-SS
80-31405-SS
80-31406-SS
80-31408-SS
80-31410-SS
80-31412-SS
|
One
Piece Shoe - 1" x 3 - Formed Stainless
One
Piece Shoe - 1" x 4" - Formed Stainless
One
Piece Shoe - 1" x 5" - Formed Stainless
One
Piece Shoe - 1" x 6" - Formed Stainless
One
Piece Shoe - 1" x 8" - Formed Stainless
One
Piece Shoe - 1" x 10" - Formed Stainless
One
Piece Shoe - 1" x 12" - Formed Stainless
|

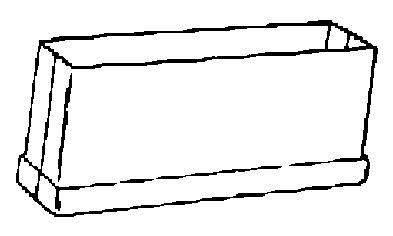

3" High
- 1-1/4" Post - with bottom hem
|
Model |
Description |
|
80-3202-FS
80-3203-FS
80-3204-FS
80-3205-FS
80-3206-FS
80-3208-FS
80-3210-FS
80-3212-FS |
One
Piece Shoe - 1-1/4" x 2" - Formed Stainless
One
Piece Shoe - 1-1/4" x 3" - Formed Stainless
One
Piece Shoe - 1-1/4" x 4" - Formed Stainless
One
Piece Shoe - 1-1/4" x 5" - Formed Stainless
One
Piece Shoe - 1-1/4" x 6" - Formed Stainless
One
Piece Shoe - 1-1/4" x 8" - Formed Stainless
One
Piece Shoe - 1-1/4" x 10" - Formed Stainless
One
Piece Shoe - 1-1/4" x 12" - Formed Stainless
|
Top of Page
--------- Return to
Hardware Page
Ceiling
Hung Floor Support
1-1/4"
Post
Adjustable
to 12" in height
|
Model |
Description |
|
9-8503 |
CHB
Floor Support - Stainless Steel
|
1-1/4" Headrail - Post
Bracing
 Rail
to Wall
End Plug
HEADRAIL MUST SHIP VIA TRUCKLINE
|
Model |
Description |
|
80-9005-AA
80-9016-LP
80-9095-ZC |
Tube
Headrail - 1-1/4" Post - Anodized Aluminum - 180" Long
Tube Rail End Plug -
MDF - Chrome Laminate
1-1/4" - Tube Rail to Wall Bracket
- Zamak - Chrome
|
3/4" Headrail - Post Bracing
Rail to Wall
HEADRAIL MUST SHIP VIA TRUCKLINE
|
Model |
Description |
|
80-9004-AA
80-9095-SS |

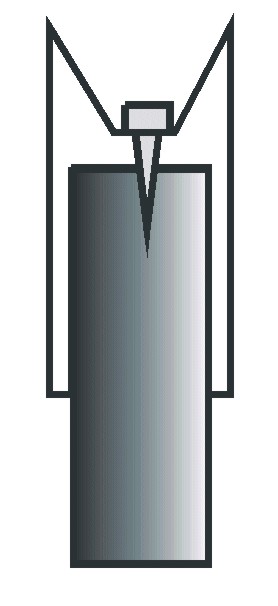

Fin
Headrail - 3/4" Post - Anodized Aluminum - 180" Long
3/4" Fin Rail to Wall Bracket
- Stainless Steel
|
